AH/MG Power Requirements - Analysis by Colin Ham

Post by HealeyBN7 » Thu Feb 27, 2014 8:30 am

With Colin Ham's permission I thought it would be of interest to share an analysis he completed while working at BMC/MG.

Here is a bit of our dialog to help explain the chart.

Colin: I came across this in my archives from my time at BMC/MG – thought you might be interested.

Dean: Is it from wind tunnel testing or road testing? It is interesting that the MGC GT has a lower power requirement then a regular MGB GT. Do you think that is from the bulge in the hood which could act to deflect air over the windshield or do those cars sit lower?

Colin: I don't know where the data was obtained I suspect it was from wind tunnel testing. It was given to me by Eddie Maher, head engine designer at Morris Engines where I worked in Engine Development. It was part of Nuffield/BMC at the time (prior to British Leyland) and manufactured MGB, (B series) AH (C series) engines as well as Mini Cooper S. I was just out of apprenticeship and my responsibility was to calculate engine power output from the engine test beds. We did not have any computers and most engine brakes were water dynamometers not electric, I had to hand calculate all results using a slide rule.
We needed to know some idea of the effect the engine modifications we were testing would have on the car's top speed. You will note that we quoted flywheel horsepower as that is where we measured it. No road roller dynos. Very few MGC engines produced 150 HP as quoted and most were around 140.
The MGC figures were probably influenced by the hood bulge and also possibly by the cleaner underside of the car (Torsion bar frt suspension, lack of frt engine cross member etc,. The car also used 15 inch vs 14 inch for the BGT.)

Dean
Attachments
power requirements colin ham-1.jpg

User avatar
Larry Kluss
Veteran Member
Posts: 1010
Joined: Wed Jul 25, 2007 12:28 pm
Vehicles Owned: -
1967 MGB (Works tribute)
1968 E-type Jaguar FHC
1974 Chevy Nova SS (faux)
2000 Ford Ranger XLT
2008 Jaguar XJ L
Location: Conejo Valley

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by Larry Kluss » Thu Feb 27, 2014 1:28 pm

Neat stuff, Dean. If I'm reading this right, with the 92(?) stock horsepower in the MGB and GT, the GT should go 2 MPH faster top speed.

User avatar
HealeyBN7
Core Member
Posts: 834
Joined: Mon Jul 30, 2007 6:33 pm
Vehicles Owned: 1959 Peerless GT
1960 Austin Healey 3000
1961 Warwick GT
1971 Lotus Europa
1984 BMW 528e
1987 BMW 535is
1988 BMW M5
1995 Range Rover
Location: Thousand Oaks CA

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by HealeyBN7 » Thu Feb 27, 2014 1:51 pm

Larry Kluss wrote:Neat stuff, Dean. If I'm reading this right, with the 92(?) stock horsepower in the MGB and GT, the GT should go 2 MPH faster top speed.
Yes. That's how I read it as well. With the same HP the GT has a higher top speed. Another way to look at it, is it takes more HP to push the Healey to 100 MPH then any of the other cars listed.

If you want to keep up with Steve in his GT at 100 MPH you will need to find an additional 3-4 HP - all other factors being equal, which we know they are not:)

I am not exactly sure what a water dynamometers is all about, but it probably gave birth to the viscus coupling that I had to replace in the Range Rover transfer case...

Dean

User avatar
Steve Simmons
Site Admin
Posts: 3895
Joined: Thu Sep 07, 2006 9:45 pm
Vehicles Owned: .
1925 Ford Model T
1939 Ford V8 Pickup
1946 John Deere AN
1949 MG TC
1958 MGA Roadster
1965 MGB
1967 MGB GT (UK-Spec)
1969 MGC GTS
Location: Co-Nay-Ho Valley
Contact:

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by Steve Simmons » Thu Feb 27, 2014 2:40 pm

I was talking with Dean about the data. The MGB and MGB GT drag coefficients are accurate based on past research I've done on the subject. I had never seen data for MGC before, so best I could figure was the bulge on the hood of the MGC lowered the high pressure area at the windscreen. The relatively vertical (by modern standards) position of the glass makes that the least aerodynamic part of the car, and a big source of wind noise.

The MGC does not sit lower. If anything maybe 1/2" higher due to larger wheels but the same rear springs. Front is of course adjustable for height.

Regarding top speed of MGB versus MGB GT, the GT was rated for a higher top speed by the factory simply due to better aerodynamics of the coupe body. I believe it was 108 for MGB and 110 or 112 for the GT version. These are early (pre-68) figures. Later cars were a bit slower.

As an aside, a few years back I calculated the top speed of my upgraded MGC based on horsepower, torque, gearbox and rear end gearing and aerodynamics. I had to estimate the drag coefficient based on MGB GT data but looking at this chart I may have been too high (slower). I did not account for tire size or drag, nor do I think it would be a large influence. With the tires I have there may be more drag than stock, but possibly better aerodynamics. Anyway, the theoretical top speed based on estimated power output (as stated by the previous engine builder) was 152 MPH. I do not plan to test that in the real world.

I do admit I was surprised how inefficient the Austin Healey was. It must be mostly due to the front end and that large vertical grill area. Probably five times better than my MG TC though!

User avatar
Larry Kluss
Veteran Member
Posts: 1010
Joined: Wed Jul 25, 2007 12:28 pm
Vehicles Owned: -
1967 MGB (Works tribute)
1968 E-type Jaguar FHC
1974 Chevy Nova SS (faux)
2000 Ford Ranger XLT
2008 Jaguar XJ L
Location: Conejo Valley

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by Larry Kluss » Thu Feb 27, 2014 5:56 pm

I'm Sure Steve knows this, but aerodynamics were the main reason the factory always raced the MGB with a hardtop, before switching to the -GT after it was introduced.

At Le Mans in '63-'65, they raced the MGB with a different "droop-snout" front end to improve the aerodynamics. Not really sure how they got away with that in the GT class.
Attachments
mgb lemans.jpg
mgb lemans.jpg (54.32 KiB) Viewed 3164 times

User avatar
Steve Simmons
Site Admin
Posts: 3895
Joined: Thu Sep 07, 2006 9:45 pm
Vehicles Owned: .
1925 Ford Model T
1939 Ford V8 Pickup
1946 John Deere AN
1949 MG TC
1958 MGA Roadster
1965 MGB
1967 MGB GT (UK-Spec)
1969 MGC GTS
Location: Co-Nay-Ho Valley
Contact:

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by Steve Simmons » Thu Feb 27, 2014 6:08 pm

Plus they actually had two versions, a long nose and a short nose. I wonder what those extensions would do for a GT's aerodynamics.

User avatar
HealeyBN7
Core Member
Posts: 834
Joined: Mon Jul 30, 2007 6:33 pm
Vehicles Owned: 1959 Peerless GT
1960 Austin Healey 3000
1961 Warwick GT
1971 Lotus Europa
1984 BMW 528e
1987 BMW 535is
1988 BMW M5
1995 Range Rover
Location: Thousand Oaks CA

Re: AH/MG Power Requirements - Analysis by Colin Ham

Post by HealeyBN7 » Thu Feb 27, 2014 6:11 pm

Larry Kluss wrote:I'm Sure Steve knows this, but aerodynamics were the main reason the factory always raced the MGB with a hardtop, before switching to the -GT after it was introduced.

At Le Mans in '63-'65, they raced the MGB with a different "droop-snout" front end to improve the aerodynamics. Not really sure how they got away with that in the GT class.

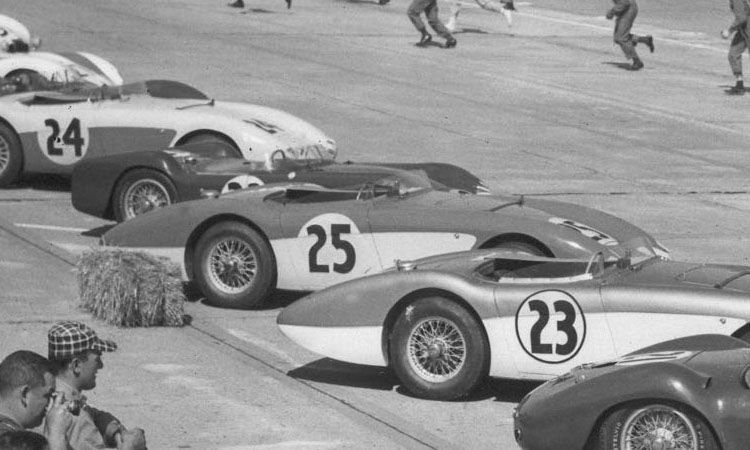

Healey must have figured out that they were at some disadvantage with the up front nose and started stretching the front and back into "Streamliners". Here is a photo of three on the grid at Sebring.
